Product Overview

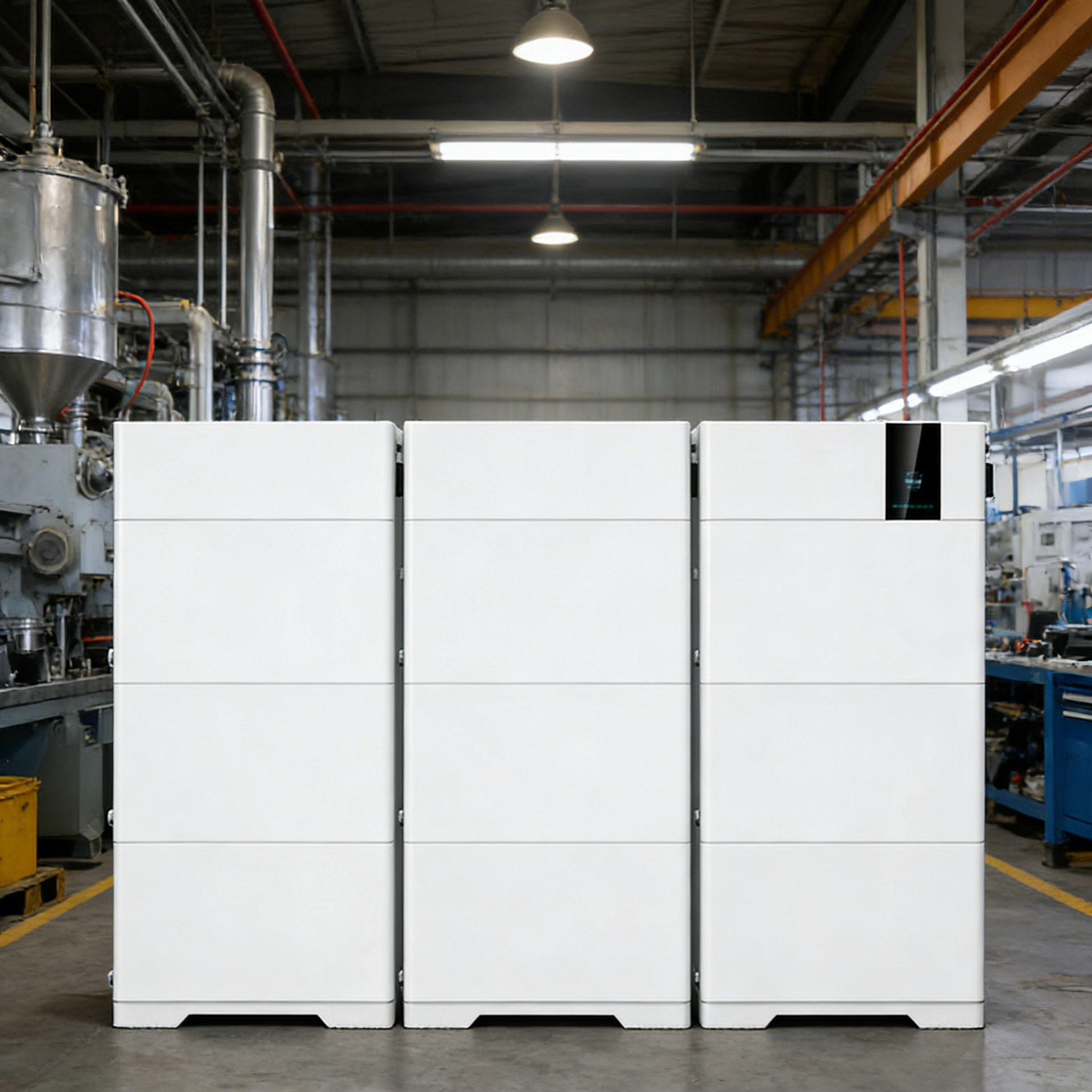

AIMEDA High Pressure Stackable Split Household LiFePO4 Energy Storage Battery is a modular, scalable home energy solution designed for hybrid grid and off-grid applications. With a capacity range of 10–20kWh and IP65 protection, this stackable split-type system combines high safety LiFePO4 chemistry, flexible installation, and robust weather resistance to deliver reliable backup power, peak load shifting, and solar self-consumption for residential use.
Key Features

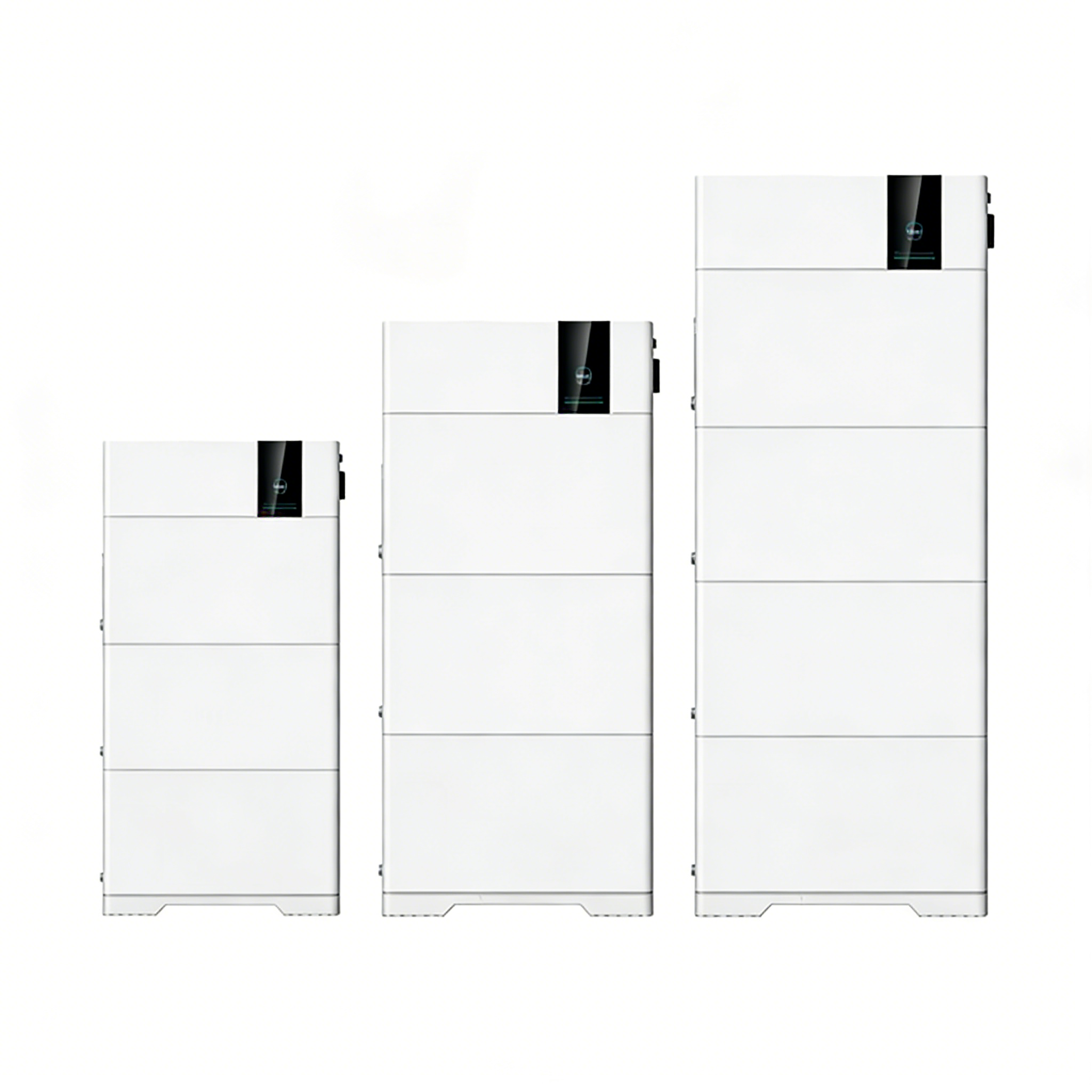

- Stackable & Modular Design: Split-type stackable structure allows flexible capacity expansion from 10kWh to 20kWh by adding/removing battery modules, adapting to changing household energy needs.
- High Safety LiFePO4 Chemistry: Premium LiFePO4 cells with built-in BMS (Battery Management System) provide comprehensive protection against overcharge, overdischarge, overcurrent, short circuit, and thermal runaway, ensuring long cycle life and stable operation.
- IP65 Waterproof & Dustproof: Rugged IP65-rated enclosure enables safe indoor and outdoor installation, resisting rain, dust, and harsh environmental conditions.
- High Pressure Resistant: Reinforced casing design withstands high pressure and physical impacts, enhancing durability and reliability in diverse residential settings.
- Hybrid Grid Compatibility: Seamlessly integrates with on-grid, off-grid, and hybrid solar systems, supporting grid-tie operation, backup power, and solar energy storage.
- Smart Monitoring & Control: Equipped with a compact touchscreen display for real-time status monitoring (SOC, voltage, current, etc.) and intuitive parameter adjustment, with optional remote monitoring via WiFi/RS485/CAN.

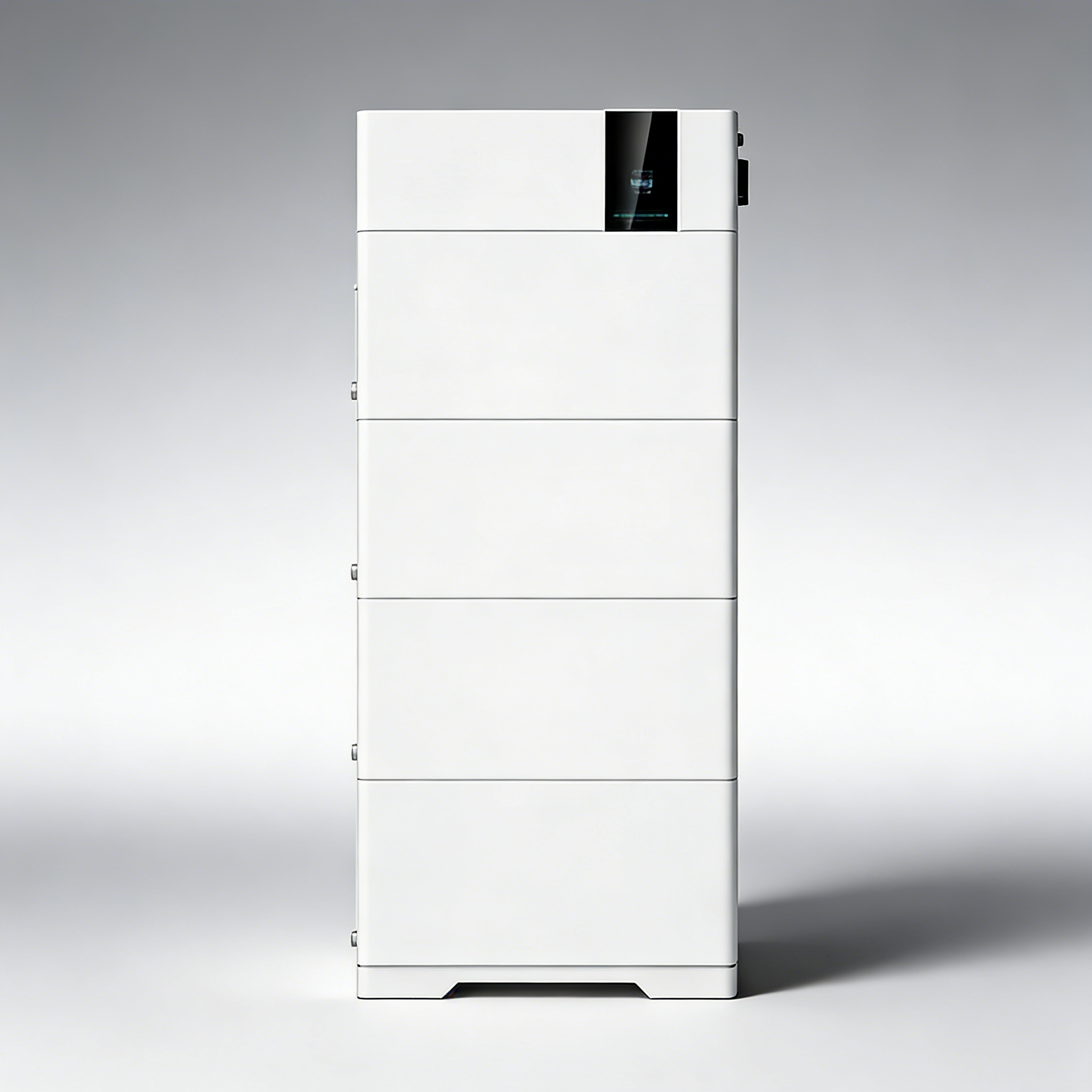

- Space-Saving & Easy Installation: Vertical stackable layout with a small footprint, and plug-and-play wiring for quick, hassle-free deployment.
Technical Specifications (Core Parameters)
| Parameter |
Specification |
| Battery Type |
LiFePO₄ (LFP) |
| Capacity Range |
10kWh – 20kWh (stackable modules) |
| Nominal Voltage |
Customizable (e.g., 48V / 51.2V) |
| Cycle Life |
≥6000 cycles (80% DOD) |
| Protection Class |
IP65 (waterproof & dustproof) |
| Communication Interfaces |
RS485 / CAN / WiFi (optional) |
| Operating Temperature |
-20°C ~ 60°C (discharging) |
| Installation |
Vertical stackable, indoor/outdoor |
| Grid Compatibility |
On-grid, off-grid, hybrid solar systems |
| Certifications |
UN38.3, CE, FCC, RoHS |
Applications
- Residential solar PV energy storage systems
- Home backup power supply during grid outages
- Peak load shifting and valley filling to reduce electricity costs
- Off-grid and remote area power supply (cabins, vacation homes)
- Hybrid grid-tie solar energy systems
- Sustainable home energy management
