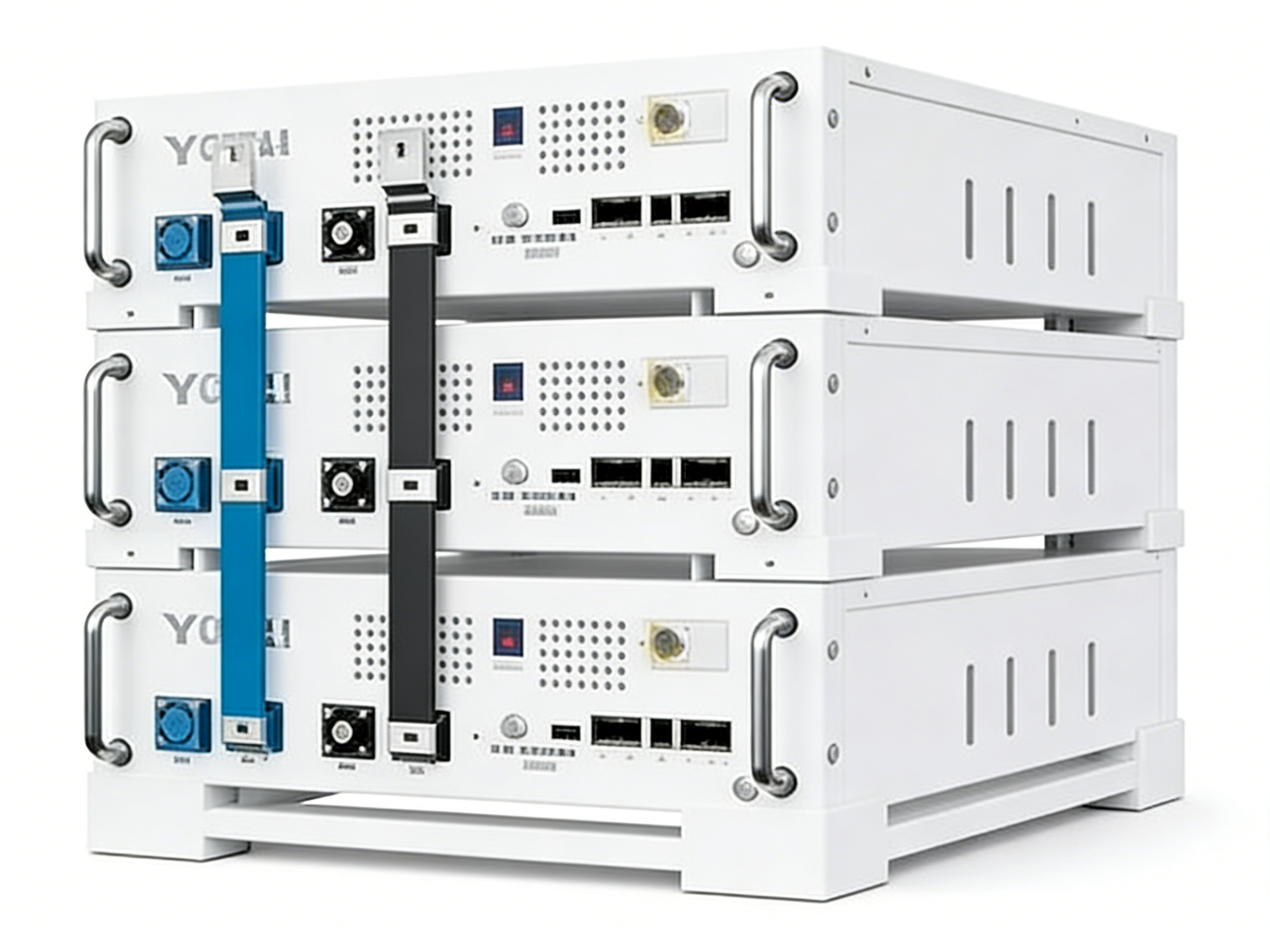

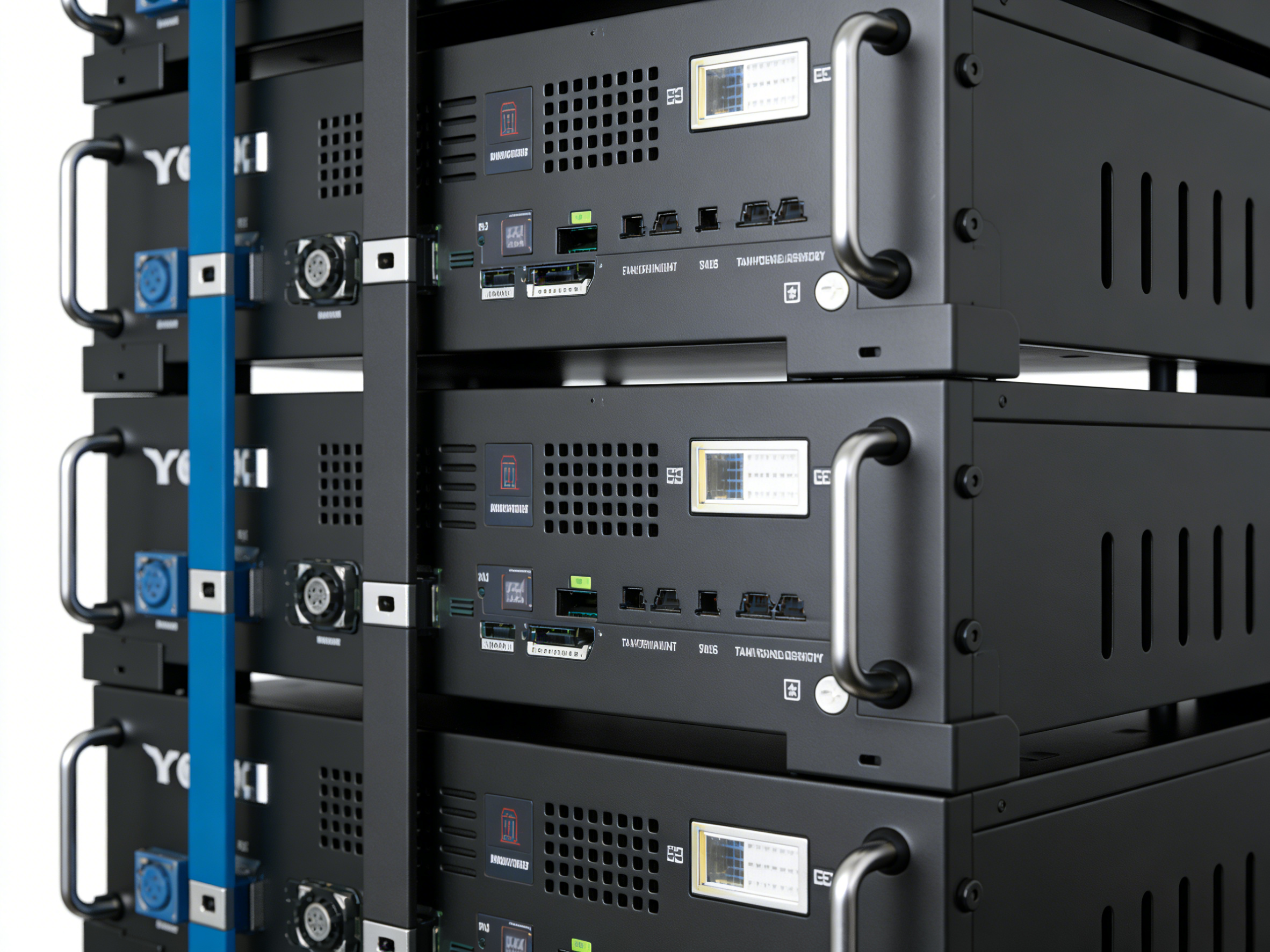

AIMEDA Split Rack-Mounted Household Energy Storage Battery is a high-performance LiFePO4 battery system designed for residential and light commercial energy storage. Built with premium LiFePO4 cells, it delivers over 6000 charge-discharge cycles, ensuring long-term reliability and cost-effectiveness. The split rack-mounted design allows flexible installation and easy capacity expansion, while the CAN communication interface enables seamless integration with solar inverters and smart energy management systems.
Key Features
- Long Cycle Life: Over 6000 cycles at 100% DOD, 0.2C charge/discharge rate, and 25°C ambient temperature, providing a durable and sustainable energy solution.

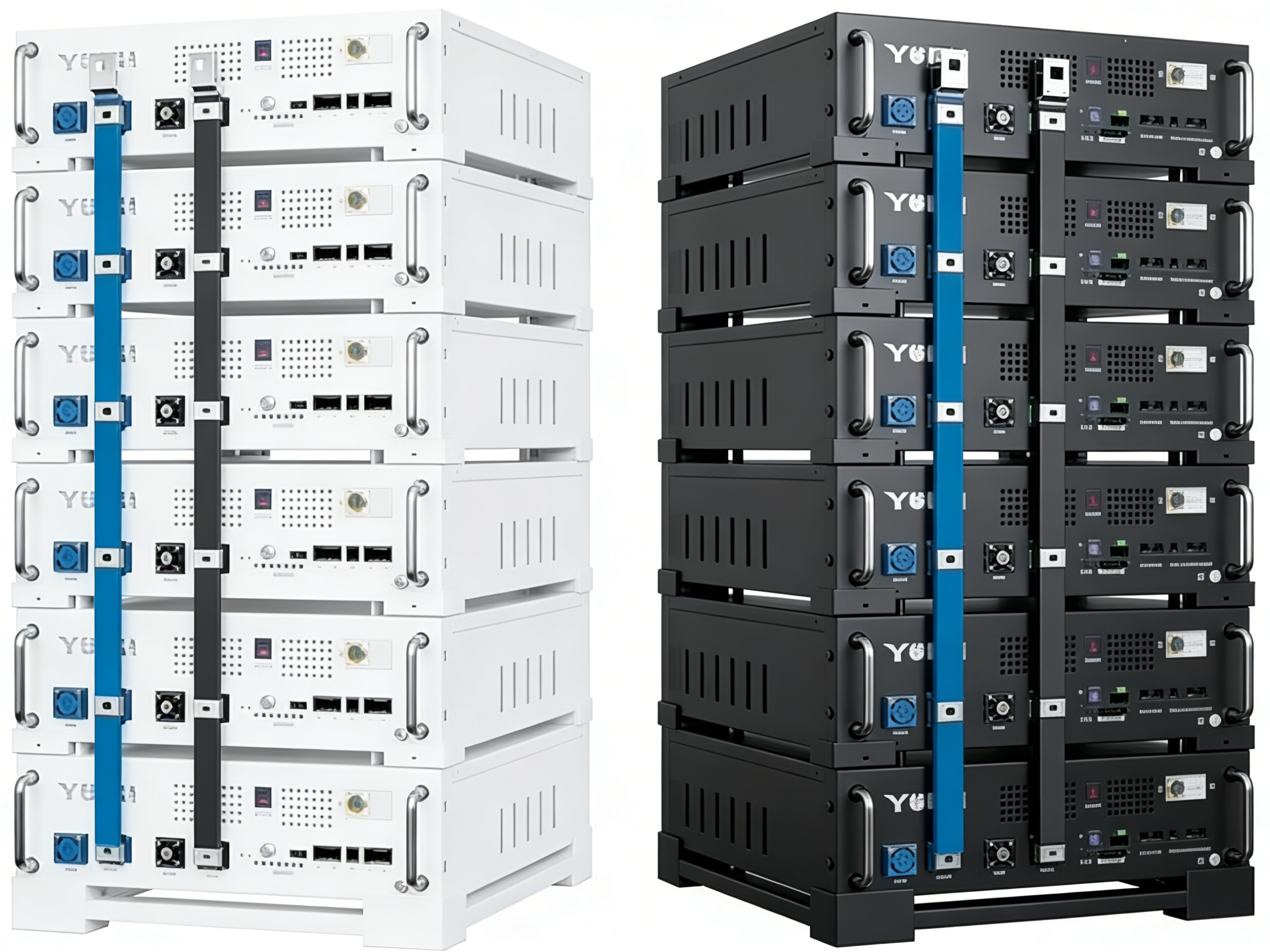

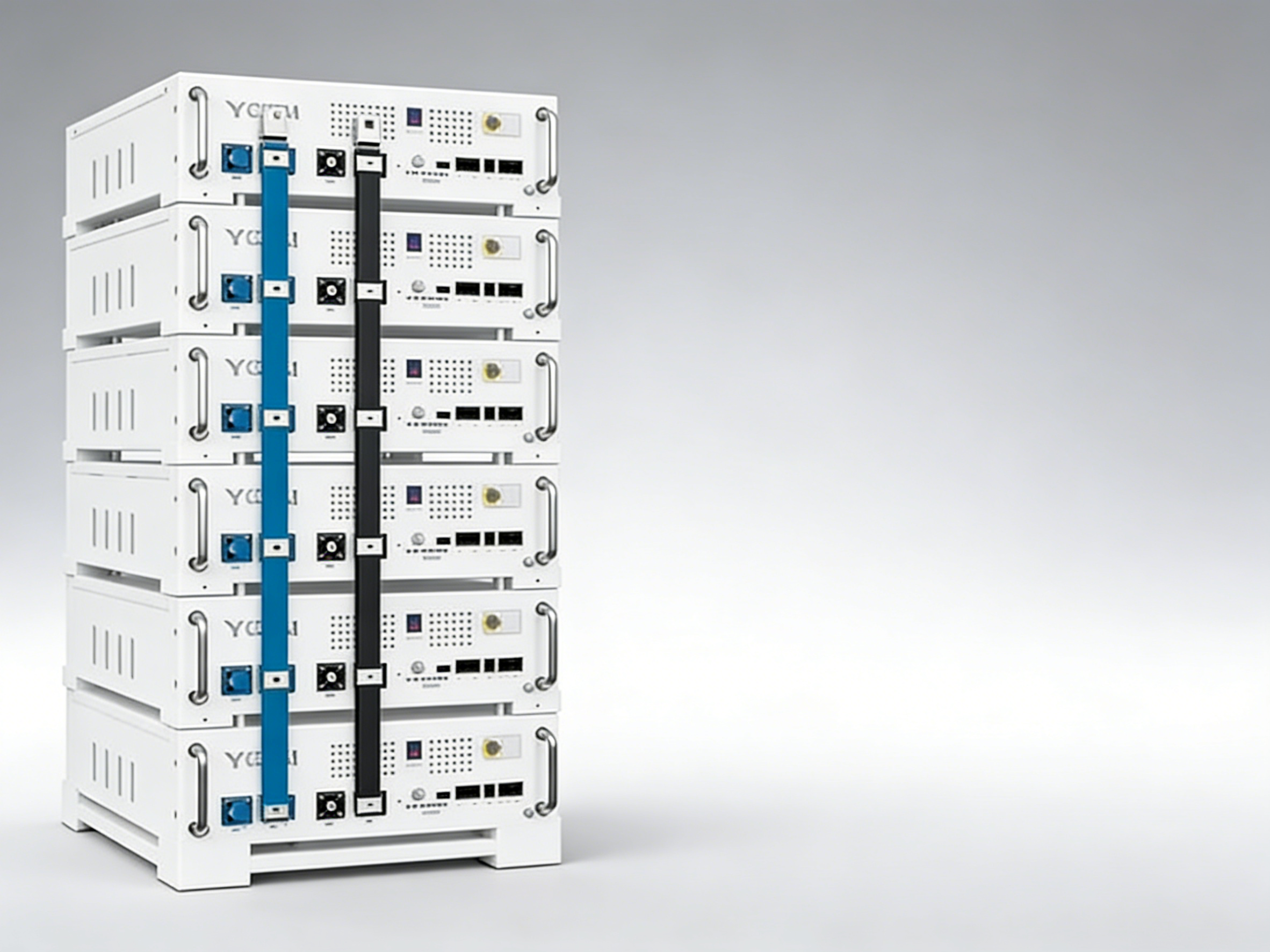

- Split Rack-Mounted Design: Modular stacking structure for easy installation, space-saving deployment, and scalable capacity expansion.
- Advanced Communication: Equipped with CAN/RS485/RS232 interfaces for real-time monitoring and system integration with most mainstream inverters.
- Wide Operating Temperature Range: Operates stably from -20°C to 60°C (discharging), suitable for diverse climate conditions.
- High Safety Standards: Built-in protection against overcharge, overdischarge, overcurrent, short circuit, and overheating, with UN38.3 certification for safe transportation and use.
Technical Specifications
| Parameter |
Specification |
| Product Model |
YT-B5120ML2-AF |
| Rated Capacity |
5.12kWh |
| Nominal Capacity |
100Ah |
| Battery Type |
LFP (LiFePO₄) |
| Combination Method |
16S1P |
| Nominal Voltage |
51.2V |
| Operating Voltage |
43.2V ~ 58.4V |
| Charging Current |
Standard: 50A, Max: 100A |
| Discharging Current |
Standard: 50A, Max: 100A |
| Cycle Life |
6000 Cycles (Test Condition: 100% DOD, 0.2C Charge/Discharge, 25°C) |
| Communication Method |
CAN/RS485/RS232 |
| Weight |
44±1kg |
| Dimensions |
440555135mm (WidthDepthHeight) |
| Operating Temperature |
Charging: 0~55°C; Discharging: -20~60°C |
| Storage Temperature |
-20~45°C (≤30 days, 20~60% SOC) |
| Maximum Operating Altitude |
2000m |
| Protection Class |
IP20 |
| Installation Method |
Stacking |
| Certification |
UN38.3 |
Applications
- Residential solar energy storage systems
- Backup power supply for home appliances
- Off-grid and hybrid solar systems
- Light commercial energy storage solutions
- Peak shaving and load shifting applications
