Product Overview

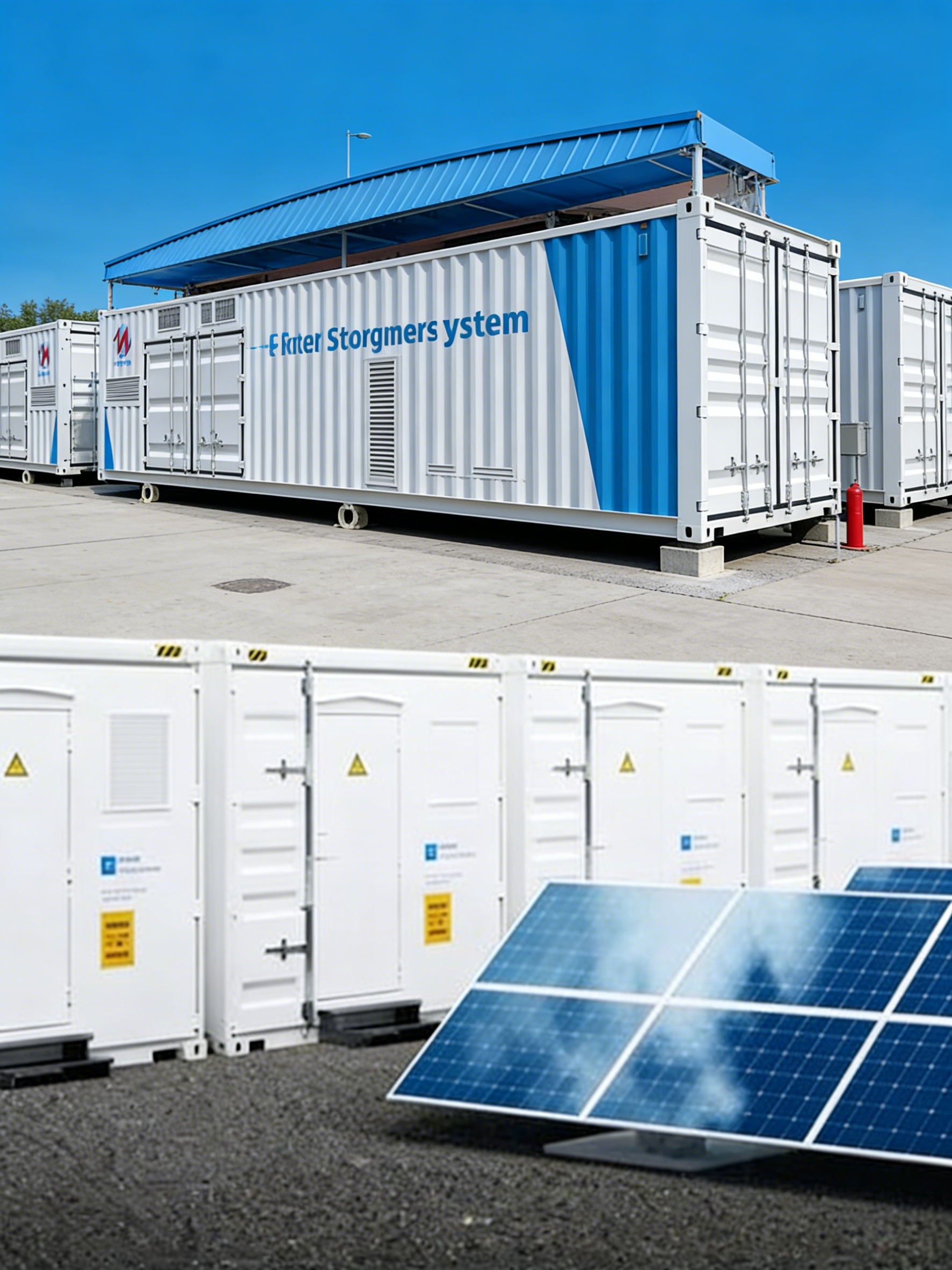

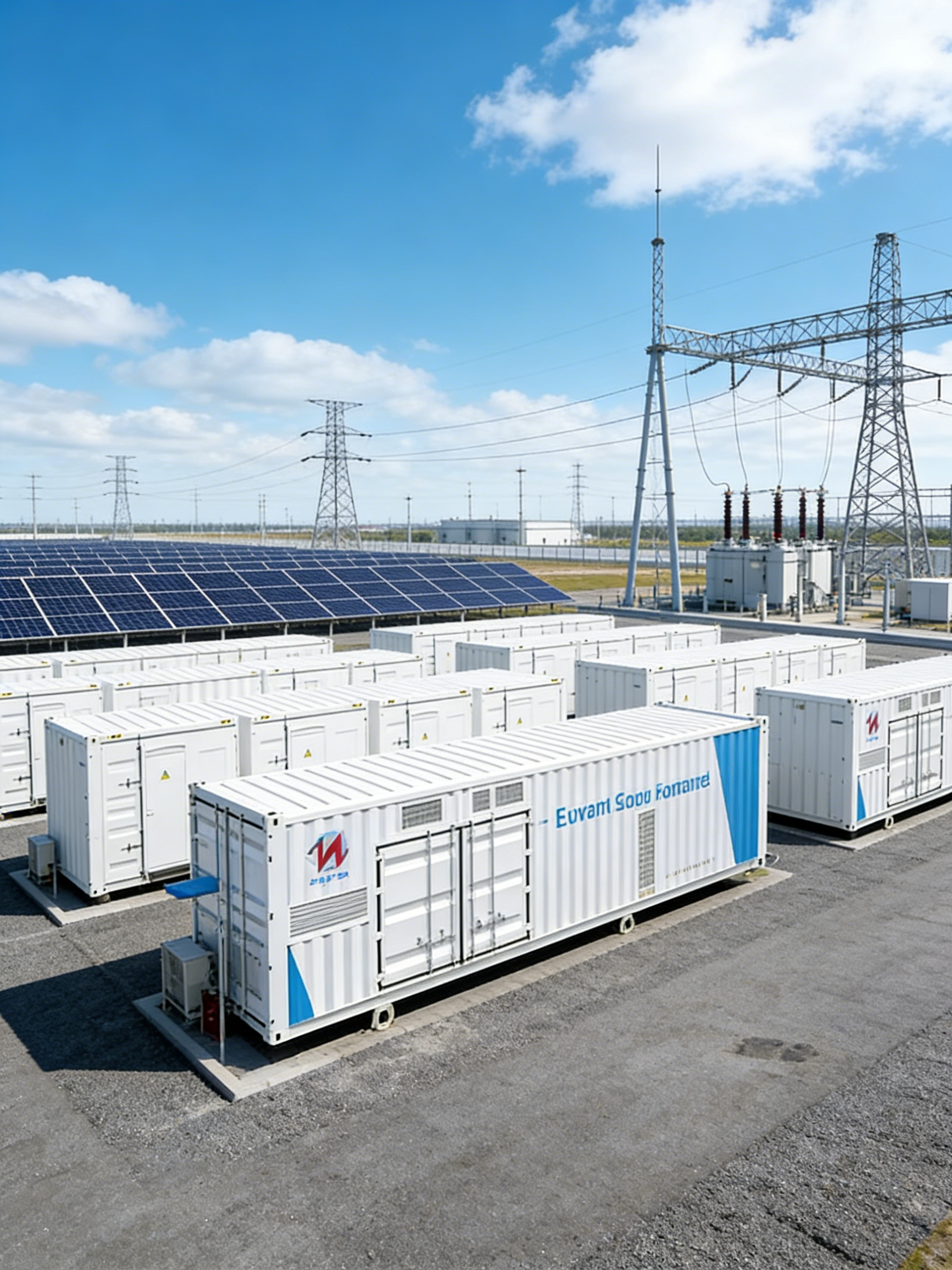

AIMEDA Industrial & Commercial Containerized LiFePO4 Energy Storage System is a large-scale, modular energy storage solution designed for industrial and commercial applications, with a capacity range of 100KWh to 1200KWh. Built with high-performance LiFePO4 battery cells, this containerized system integrates advanced battery management, cooling, fire protection, and access control systems to deliver reliable, safe, and scalable energy storage for grid support, peak shaving, backup power, and renewable energy integration.
Key Features
- Large-Scale Capacity: Flexible capacity options from 100KWh to 1200KWh, ideal for industrial zones, factories, large farms, islands, deserts, and docks.
- High Energy & Power Density: Delivers high energy density (e.g., 2.45MWh per unit) and stable output power (e.g., 1.25MW) for grid-connected operations.
- Integrated System Design: All-in-one containerized structure includes energy storage batteries, BMS, cooling system (4 units of 3kW air conditioners), fire protection system, access control system, and auxiliary equipment for plug-and-play deployment.
- Advanced Safety & Security: Comprehensive protection systems including BMS (battery management system), fire suppression, grounding, and overcharge/overdischarge/overcurrent/short-circuit protection to ensure safe operation.
- Efficient Thermal Management: Equipped with precision air conditioning to maintain optimal operating temperatures, extending battery life and ensuring stable performance in diverse climates.
- Smart Grid Compatibility: Seamlessly integrates with solar PV systems, power grids, and energy management systems for peak load shifting, valley filling, frequency modulation, and emergency power supply.
- Durable & Long-Lasting: High-quality LiFePO4 cells with long cycle life, suitable for heavy-duty industrial and commercial use cases.

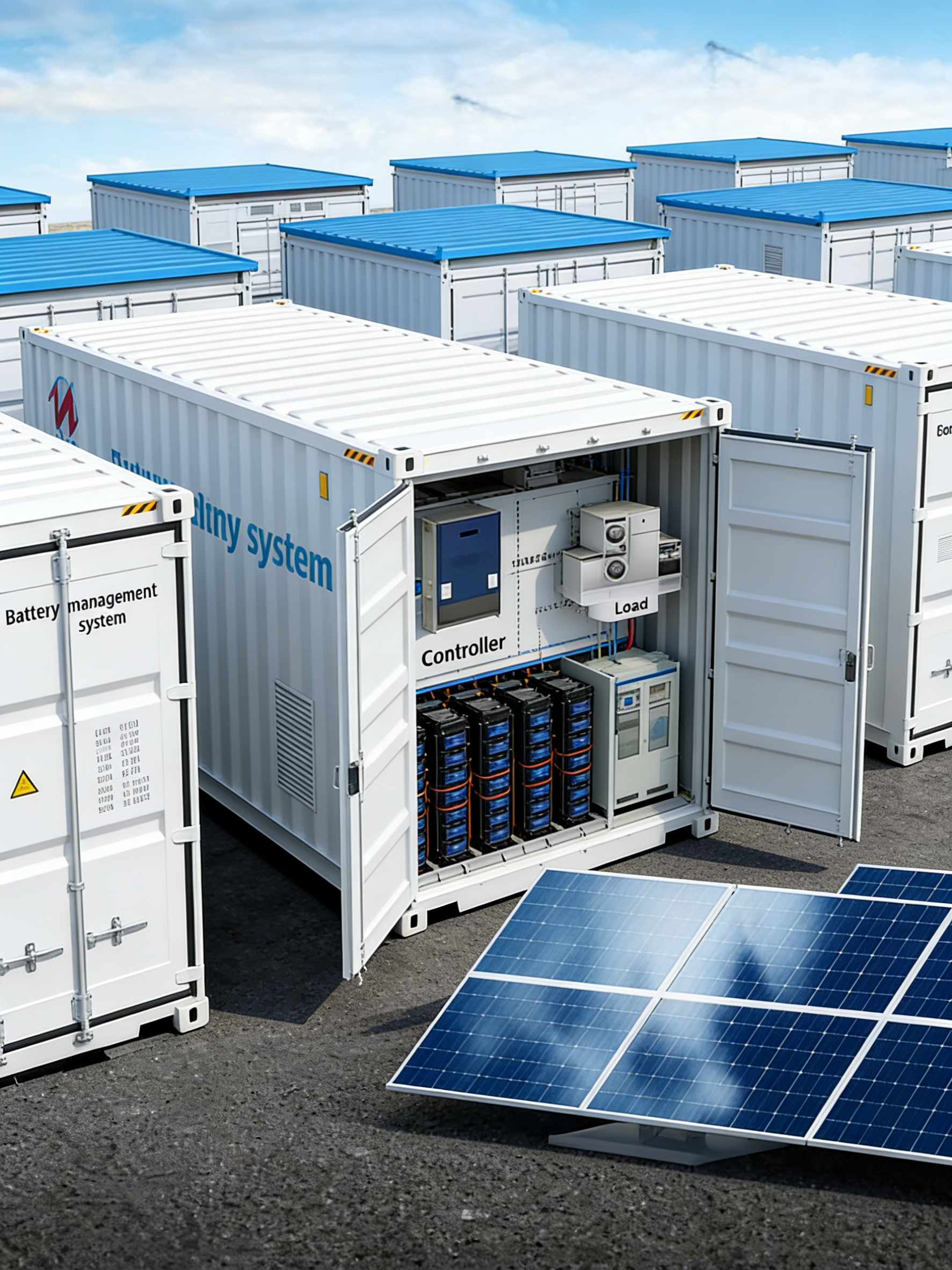

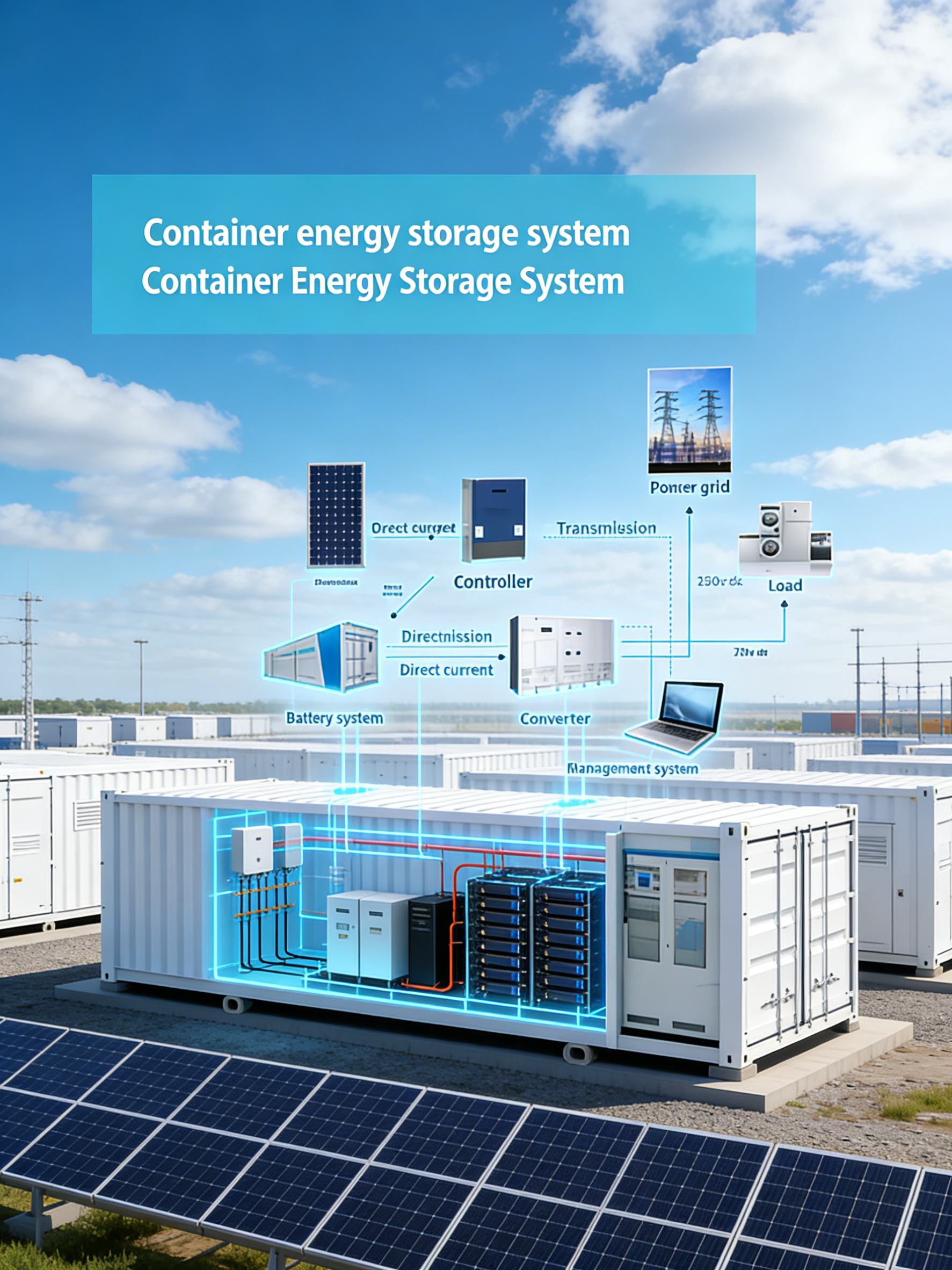

System Components
| Component |
Quantity |
Remarks |
| Container |
1 |
20ft non-standard customized container |
| Battery Pack |
6 |
High-capacity LiFePO4 battery modules |
| Energy Storage Converter |
1 |
Grid-tie inverter for DC/AC conversion |
| Air Conditioner |
4 |
3kW units for efficient heat dissipation |
| Fire System |
1 |
Automatic fire detection and suppression |
| Auxiliary System |
1 |
Includes access control, monitoring, and grounding systems |
| Battery Management System (BMS) |
1 |
Monitors cell voltage, temperature, and state of charge (SOC) |
Applications
- Industrial and commercial peak shaving & valley filling
- Grid frequency modulation and voltage support
- Renewable energy (solar/wind) smoothing and integration
- Emergency backup power for factories, data centers, and critical infrastructure
- Off-grid and remote area power supply (islands, deserts, docks)
- Large-scale farm and agricultural energy management
Project Cases
- United States (2019): 250kW/50 units system for peak filling and emergency power supply.
- Poland (2020): 850kWh system for microgrid support.
- United States (2022): 6.39MWh system for energy transfer, new energy smoothing, and optimal storage DC coupling.
- Poland (2022): 15.36MWh system for peak filling, valley filling, and frequency modulation.
