Product Overview

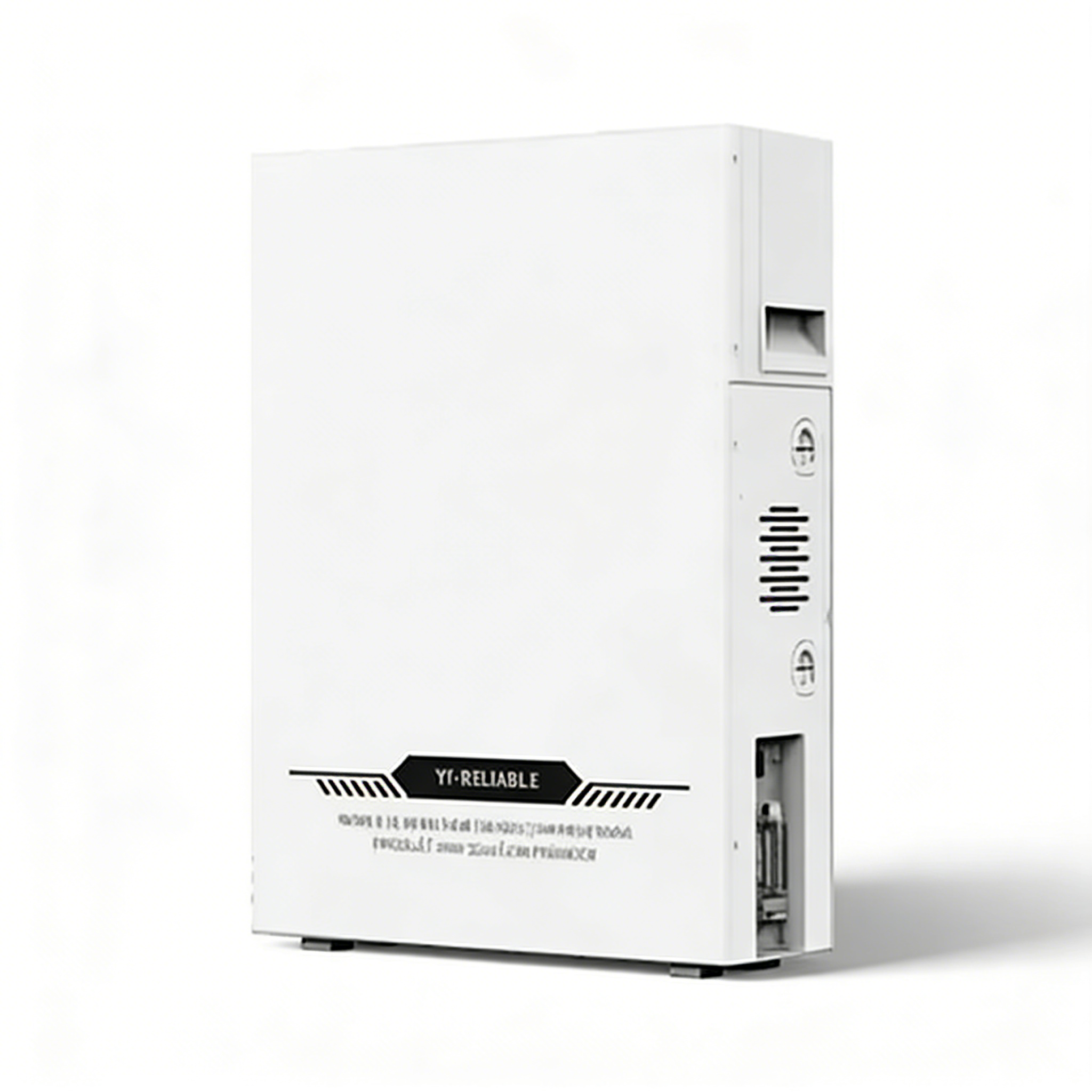

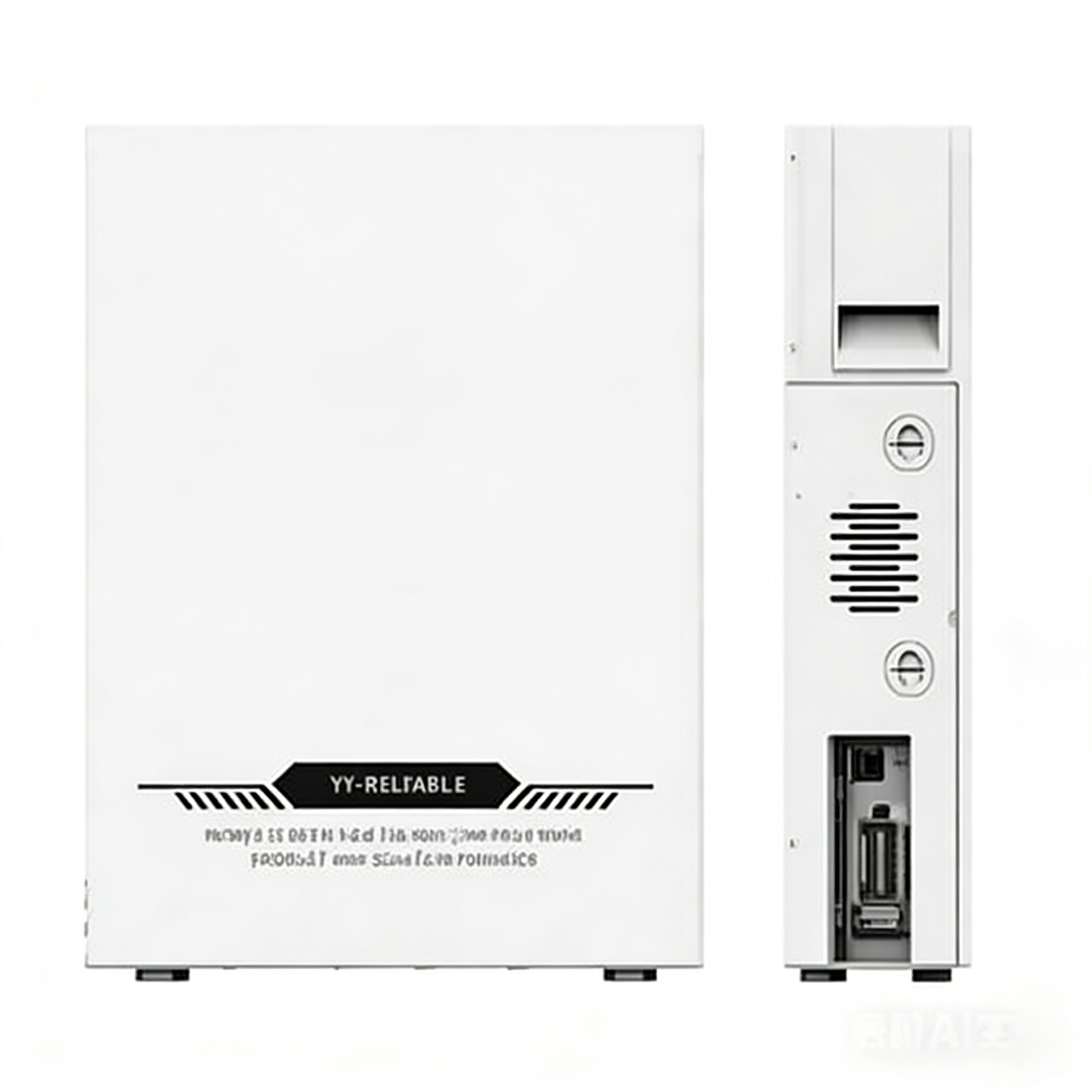

AIMEDA Wall-mounted Household LiFePO4 Energy Storage Battery is a compact, high-performance residential energy solution designed for reliable home power backup and solar energy storage. With a 5.1kWh capacity, IP65 protection, and over 6000 charge-discharge cycles, this wall-mounted battery combines long-lasting LiFePO4 chemistry, robust safety features, and seamless CAN communication to deliver stable, efficient energy storage for modern households.
Key Features
- Wall-mounted & Space-saving Design: Slim, vertical wall-mounted structure minimizes floor space, ideal for installation in garages, utility rooms, or outdoor areas.
- High Safety LiFePO4 Chemistry: Premium LFP cells with a built-in fire protection module and comprehensive BMS safeguards against overcharge, overdischarge, overcurrent, short circuit, and thermal runaway, ensuring long-term reliability.
- IP65 Waterproof & Dustproof: Rugged IP65-rated enclosure enables safe indoor and outdoor deployment, resisting rain, dust, and harsh environmental conditions.
- Long Cycle Life: Over 6000 charge-discharge cycles (at 80% DOD), providing a durable, cost-effective energy storage solution for residential use.
- Smart Communication: Equipped with CAN/RS485 interfaces for seamless integration with solar inverters and energy management systems, supporting real-time monitoring and remote control.
- Optional Heating Function: Built-in optional heating module ensures stable operation in low-temperature environments (down to -20°C during discharge).
- User-friendly HMI: Optional LED display for real-time status monitoring (SOC, voltage, current, temperature, etc.) and intuitive operation.

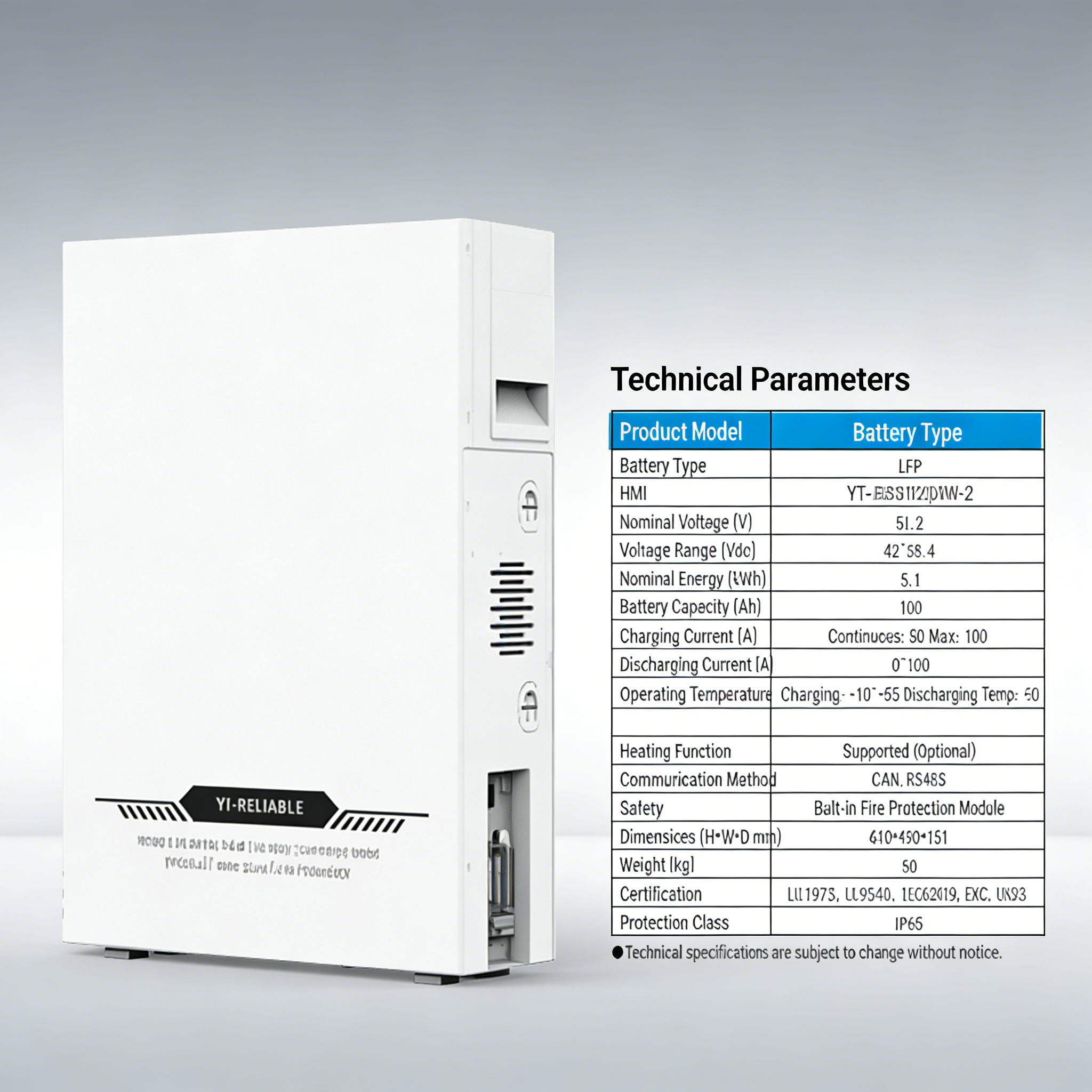

Technical Specifications
| Parameter |
Specification |
| Product Model |
YT-B5120WL2 |
| Battery Type |
LFP (LiFePO₄) |
| Nominal Voltage |
51.2V |
| Voltage Range |
42V ~ 58.4V (DC) |
| Nominal Energy |
5.1kWh |
| Battery Capacity |
100Ah |
| Charging Current |
Continuous: 50A, Max: 100A |
| Discharging Current |
0 ~ 100A |
| Cycle Life |
≥6000 Cycles (80% DOD) |
| Operating Temperature |
Charging: -10°C ~ 55°C; Discharging: -20°C ~ 60°C |
| Heating Function |
Supported (Optional) |
| Communication Method |
CAN, RS485 |
| Safety Features |
Built-in Fire Protection Module |
| Dimensions (HWD) |
610490151 mm |
| Weight |
50 kg |
| Protection Class |
IP65 |
| Certifications |
UL1973, UL9540A, UL9540, IEC62619, EMC, UN38.3, MSDS |
Applications
- Residential solar PV energy storage systems
- Home backup power supply during grid outages
- Peak load shifting and valley filling to reduce electricity costs
- Off-grid and remote area power supply (cabins, vacation homes)
- Sustainable home energy management
