Product Overview

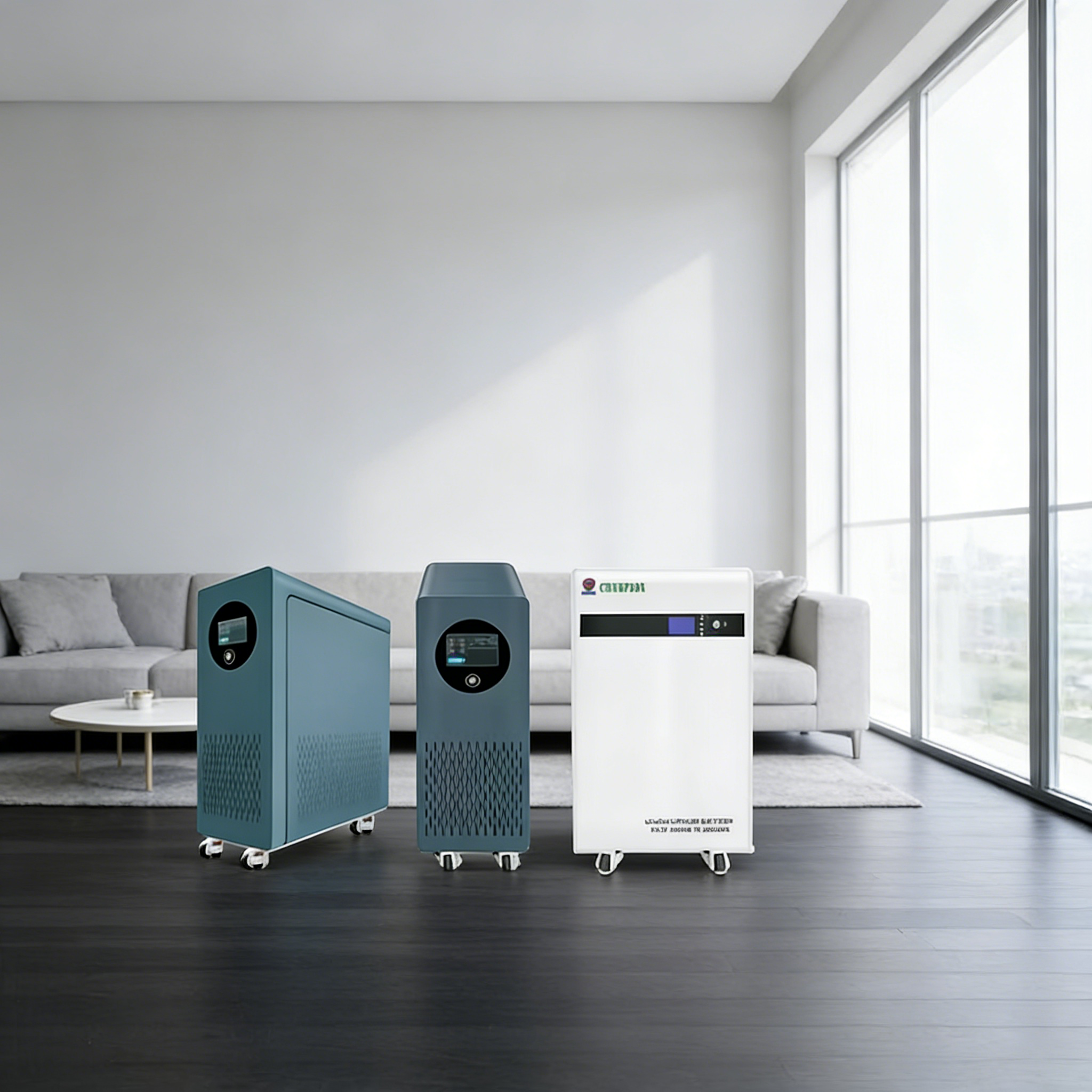

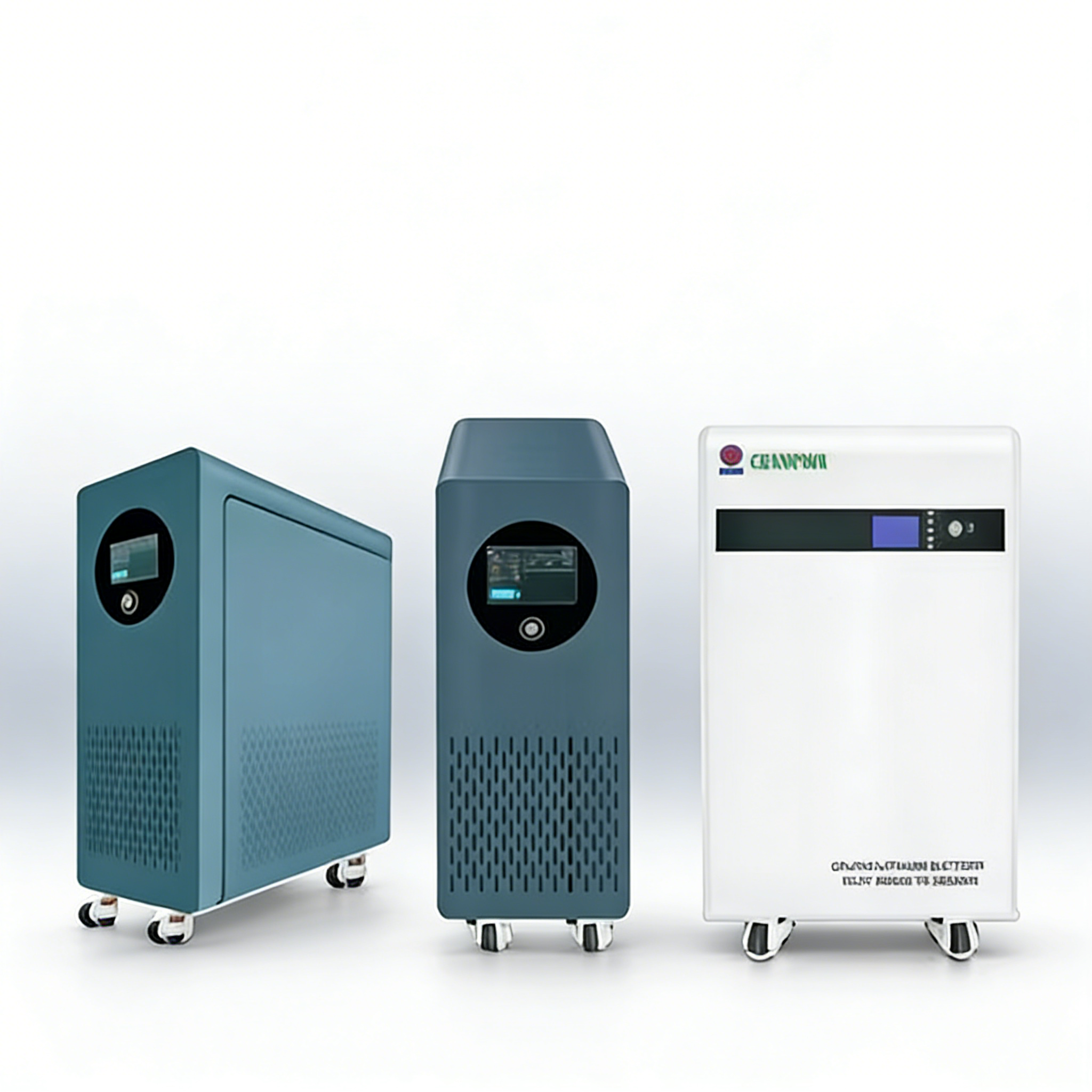

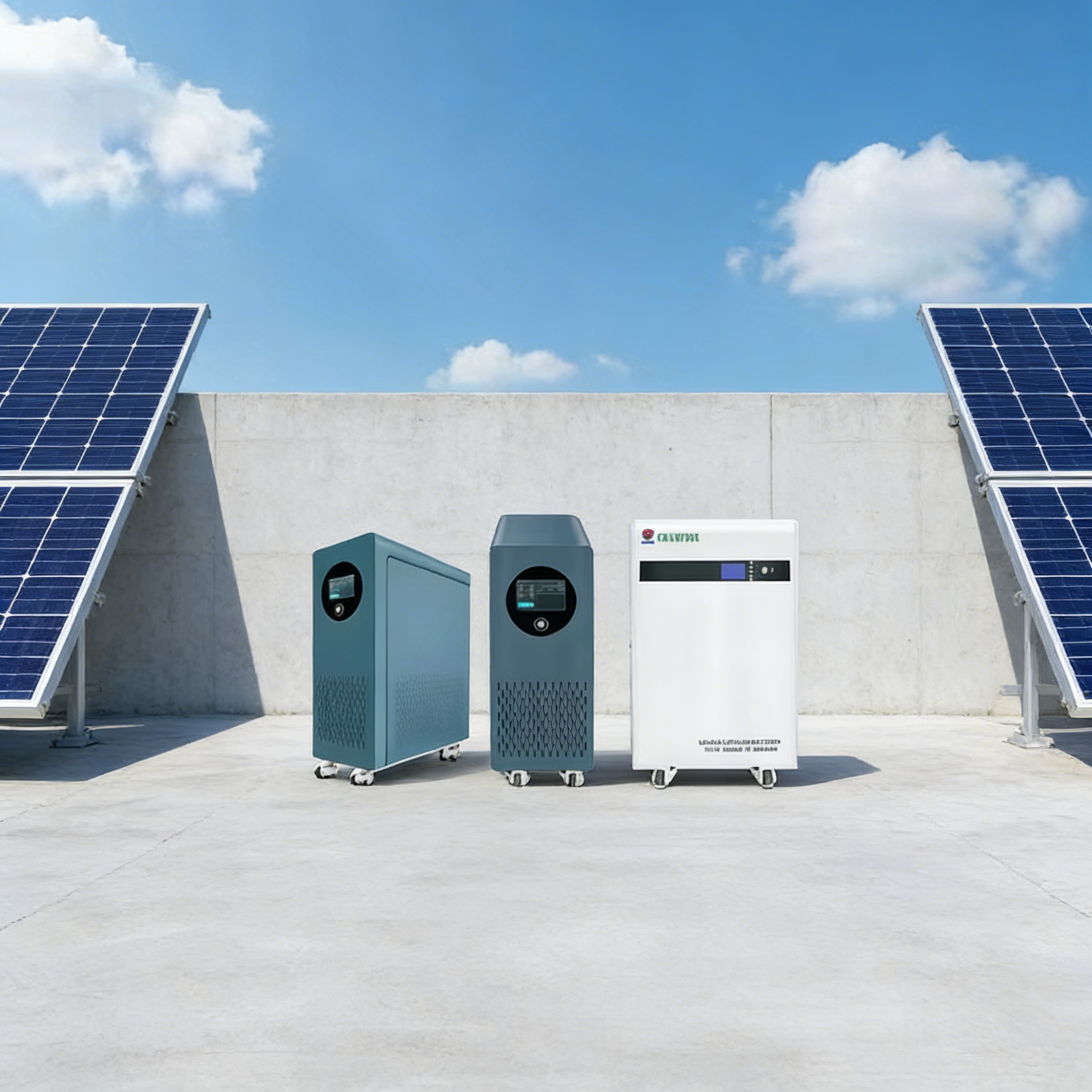

AIMEDA Wall-Mounted LiFePO4 Battery is a versatile residential and light commercial energy storage solution designed for seamless integration with solar PV systems and hybrid grid setups. With an output power range of 10–20kW and reliable CAN communication, this battery system delivers high-performance, scalable energy storage for backup power, peak load shifting, and renewable energy self-consumption. Built with premium LiFePO4 chemistry, it ensures long cycle life, robust safety, and stable operation for modern energy needs.
Key Features
- High Output Power: Delivers 10–20kW continuous output power, ideal for supporting high-demand residential and light commercial loads.
- Wall-Mounted & Compact Design: Space-saving wall-mounted structure minimizes floor footprint, suitable for installation in utility rooms, garages, or outdoor areas.
- LiFePO4 Chemistry Safety: Premium LiFePO4 cells with built-in BMS (Battery Management System) provide comprehensive protection against overcharge, overdischarge, overcurrent, short circuit, and thermal runaway, ensuring long-term reliability and safety.
- CAN Communication Interface: Seamless CAN bus integration enables real-time monitoring, data exchange, and synchronization with solar inverters, energy management systems, and smart grid platforms.
- Scalable Capacity: Modular design supports flexible capacity expansion to match varying energy demands, from small residential setups to larger commercial applications.
- User-Friendly Operation: Equipped with a clear LCD touchscreen display for real-time status monitoring (SOC, voltage, current, temperature) and intuitive parameter adjustment.
- Mobile & Wheeled Options: Available in wall-mounted, portable wheeled, and stationary configurations to suit diverse installation scenarios.
Technical Specifications (Core Parameters)
| Parameter |
Specification |
| Battery Type |
LiFePO₄ (LFP) |
| Output Power Range |
10kW – 20kW |
| Nominal Voltage |
Customizable (e.g., 48V / 51.2V / 100V DC) |
| Communication Interface |
CAN Bus (primary), RS485 (optional) |
| Cycle Life |
≥6000 cycles (80% DOD) |
| Protection Class |
IP20 / IP54 (depending on configuration) |
| Operating Temperature |
-20°C ~ 60°C (discharging) |
| Installation Types |
Wall-mounted, portable wheeled, stationary |
| Safety Features |
Overcharge/overdischarge/overcurrent/short circuit protection, thermal management |
| Certifications |
UN38.3, CE, FCC, RoHS (compliant with global safety standards) |
Applications
- Residential solar PV energy storage systems
- High-demand home backup power supply
- Commercial peak load shifting and cost reduction
- Off-grid and hybrid solar energy systems
- Small-scale industrial and commercial energy management
- Renewable energy smoothing and grid integration
